Mission Critical Handheld Device_CM65

  • VM65PS
    Smartphone-type handheld device for mission critical situations
  • VM65R
    Smartphone-type handheld device for railway systems
  • VM65C
    Dual USIM handheld device for multi-communication network
  • VM65A
    2D barcode scanner for logistics and facility management
  • VM65M
    Smart-Ship handheld device for naval battleships
  • VM65E
    Smartphone-type handheld device for air force TDD-LTE system
  • All required MCX applications are pre-loaded and pre-licensed in the device firmware for out-of-box use.
  • Outstanding Audio Quality with loud speaker(108dB)
  • Active Noise Cancelation suppresses feedback from other devices when in close proximity of each other.
  • Outperform in harsh environment_MIL-STD 810H, IP67
  • Ergonomic form factor_Slim but still rugged
  • Secure Mission-Critical Operation
    • Dedicated APN for MCPTT QCI
    • eMBMS multicast call
    • MCPTT Latency KPI
    • Man Down Alarm
  • Made in Korea

Real-time video
communication Helps in enhancing
situational awareness in an emergency.

CM65 guarantees clear and stable communications

for public safety (i.e. security, fire fighting and emergency medical services)

and various industrial fields such as railways, ship building, heavy industries and logistics.

Download Product Brochure

CM65 is durable & shock-proven
and can be used with variety of accessories

PS-LTE Rugged PhoneSmartphone-type Handheld Device
for Mission Critical Network

  • Dual USIM
    Dual Standby
    MCPTT Network
    MNO Network

  • IP67 Ingress Protection

  • Verified durability in
    extreme environment

    (salt, frost, heat : -20℃~+55℃ of temperature, 95% of moisture)

  • 1.5m Drop
    MIL-STD 810H

  • Front-faced
    Loud Speaker
    (108dB)

  • Programmable
    Dual PTT Buttons

    Main & Sub PTT Group

Ergonomic form factor
  • Light-weight(270g) but still rugged design brings comfort in day-to-day operation.
  • Large and intuitive two Push-to-Talk buttons located from each side offers the optimal user key selection.
Outstanding Audio quality
  • Qualcomm® Fluence Pro™ technology
    The Fluence algorithm detects the speaking party position and consistent voice quality
    with noise reduction by "Sound Focus" feature. It determines the best microphone channels automatically.
    Cybertel makes PTT specific audio tuning with Qualcomm audio professional.
  • Active Noise Cancellation
    MCPTT device gets echo noise from other devices in close proximity.
    With Active noise cancelling technology in both CM65 and Cybertel MCPTT Application,
    the device blocks echo feedback which generated within 5m proximity.
Mission criticl operatioin
  • Based on MCPTT knowledge and experience, Cybertel CM65 fully supports MCPTT QCI 69 for signaling,
    65 for voice and 70 for data
  • USIM based device authentication for out-of-box use
  • Fully verified with eMBMS service with Qualcomm Snapdragon chipset
  • Man-down trigger
  • Scalable Interface
    Car kit, stational cradle for dispatcher Variety of interfaces enabling interworking functions (USB-C, POGO Pin)
  • High-resollution Cameras
    Front : 2MP or 8MP (optional) Rear : 13MP
  • Shock-proven Display
    Tempered Glass (Gorilla Glass) 5-inch Full HD
  • High-efficient Battery
    High-capacity battery can survive long operation hours. Locking structure prevents drops.
  • Wide Usability
    Dual UISM supporting variety of networks Expandable storage with MicroSD CAR
  • Convenient Hard Keys
    Dedicated PTT Key (Main / Sub channels) Emergency key helping penetrate emergency information Power / Volume / Function keys
  • High Durability
    Dust & Water resistant Ruggedized for extreme and harsh environment
  • Loud and Clear Sound
    High-powered dual speakers

Industry accessory

  • The vehicle kit consists of extended loud speaker as well as built-in RSM
  • A built-in docking station charges CM65 device
  • Supporting power voltage for versatile vehicle type
  • The motorcycle kit offers comprehensive communications such as built-in Speaker Mic, Dual loud speaker, extended PTT button as well as device charging feature.
  • 10 Watt x 2 loud speaker inside
  • Locating extended PTT button on the steering so that the police can have floor control conveniently during drive
  • The helicopter kit consists of extended antenna to overcome network weak signal in the air.
  • Main and sub antenna each for PS LTE and Public network
  • The kit is mechanically compatible with ADS-33 (Flying Quality Standard Specification)
  • Mobile dispatching kit
    Mobile dispatching kit
  • 12 Bay Multi-charger
    12 Bay Multi-charger
  • Desktop cradle
    Desktop cradle
  • Remote Speaker Mic
    Remote Speaker Mic

SPECIFICATIONS

Physical Characteristics
Dimensions
156.5mm(L) x 81.1mm(W) x 16.6mm(H)
Weight
269g with Standard Battery
Display
5.0 in. Full HD (1920x1080) Gorilla Glass 3
Touchpanel
Capacitive Touch Screen (Glove & Wet Touch)
SIM
2 USIM Slots
Power
Li-ion Polymer 3,720mAh / Standard Battery
Device charging voltage : 5V DC 1.7A
Power adaptor charging voltage : 5V DC 2A
Expansion Slot
MicroSD Card Slot up to 128GB
Notification
Audible Tone; Multi-Color LEDs; Vibration
Keypad
On-Screen Keypad
Voice & Audio
Dual Loud Speakers; 1.5W X 2
Data Capture
Scanner
1D/2D Imager (SE4710)
RFID
ISO15693,14443A/B
Camera
Rear - 13MP Auto-Focus / Front - 8 MP
PTT
Physical PTT Key
Programmable
Dedicated PTT
Speakers
Front - Located 3W Dual Loud Speakers
Wireless WAN Data & Voice Communications
Radio Frequency
Band
GSM : 850, 900MHz
WCDMA : 2100, 1900, 850, 900MHz
LTE : Band 1,2,3,4,5,7,8,14,20,28
GPS
AGPS, GLONASS, BeiDou
Performance Characteristics
CPU
Qualcomm® Snapdragon™(SDM660)
Operating System
Android 12
Memory
8G RAM / 128GB ROM
User Environment
Operating Temp
-20℃ to 60℃ / -4℉ to 140℉
Storage Temp
-30℃ to 80℃ / -22℉ to 176℉
Humidity
5% to 95% Non-Condensing
Drop Spec
1.5m / 5ft MIL-STD 810G
Sealing
IP67
Wireless LAN
Wi-Fi
IEEE 802.11 a/b/g/n
Wireless PAN
Bluetooth
Bluetooth 5.0
Peripherals and Accessories
Desktop Cradle, 4 Slot Cradle, Snap-on Charger, RS-232/ USB 3.1 C Type, Vehicle Mount, Hand Strap
Warranty
Standard Warranty (I Year)
Optional Comprehensive Warranty (Up to 5 Years)

Accessories

  • CM65
    CM65

    Left and Right Hard PTT Keys
    Main/Sub-channel radio communication supported

  • Battery
    Battery

    3,720mAh / 3.85V

  • High-capacity Battery
    High-capacity Battery

    5,500mAh / 3.85V

  • Charging Adapter
    Charging Adapter

    Fast Charging Adapter (Quick charge 3.0)

  • Charging Cable
    Charging Cable

    USB-C Type

  • PTT Wired Earphones
    PTT Wired Earphones
  • Charging Cradle
    Charging Cradle

    Simultaneous Charging of Device and Battery
    PTT Keys Available

  • Charging Cradle for High-capacity Battery
    Charging Cradle for High-capacity Battery

    Simultaneous Charging of Device and Battery
    PTT Buttons Available

  • Charging Cable for Cradle
    Charging Cable for Cradle
  • Belt Clip
    Belt Clip
  • Protective Film
    Protective Film
  • User Manual
    User Manual
  • USIM for PS-LTE
    USIM (for PS-LTE)

Optional Accessories

  • Pouch Holder
    Pouch Holder

    Attachable to Molle Vest

  • Fixing Strap & Wire
    Fixing Strap & Wire
  • A-type Speaker Microphone
    A-type Speaker Microphone

    Without Embedded Amplifier

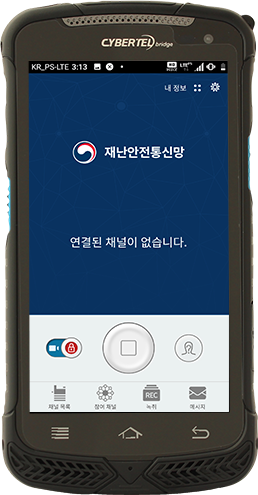

  • CM65
    상용망 전용
    스마트폰형 LTE 단말기
  • Geofree
    군 전용주파수
    TDD-LTE 단말기
  • Thomas-100
    열차무선시스템
    검증용 LTE 단말기
  • Dolphin-100
    해군 전용 스마트폰형
    WiBro 단말기

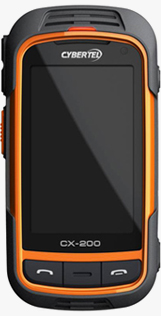

  • CX-200
    재난안전통신망
    기술검증용 단말기
  • Eagles-100
    공군 전용 스마트폰형
    WiBro 단말기
