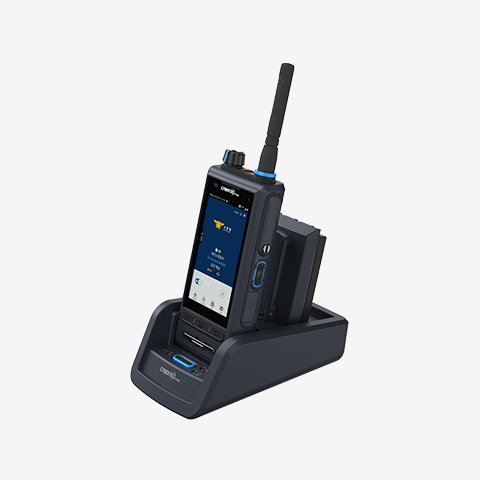

Desktop Cradle
SANL75
![Desktop Cradle](/data/skin/respon_default_en/images/sub/product/lm_acc01.jpg)
Desktop Cradle
- Feature
-
SANL75 Desktop cradle charges LM75 device and standard/extended battery while on your desk keeping it neat and organize
The desktop cradle consists of dedicated PTT button so user can initiate MCX session while the device is being charged
- Charger Characteristics
-
-
Dimensions (HxWxD)
54x91.2x151.1
-
Weight
182 gram
-
Number of Pockets
1
-
Operating voltage AC
220V
-
Power cable
EU, UK
-
Charge rate
1.5 hours
-
Chemistry
Lithium Polymer
-
Compliance
EMC, WEEE, RoHs
-
Operating Temperature
0°C to +50°C (+32°F to +122°F)
-
Package Contents
1 unit of single Bay cradle charger
1 unit of Power adaptor
-
Dimensions (HxWxD)

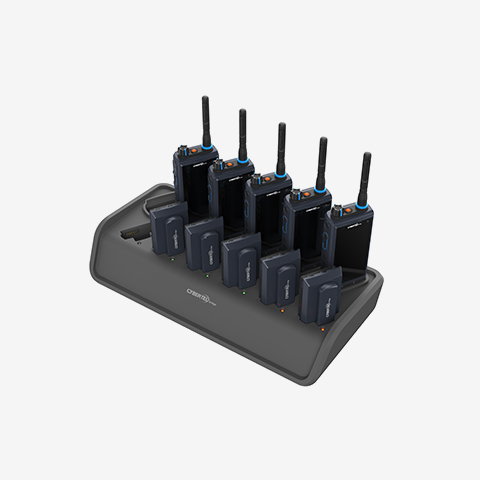

Multi-Unit Charger
SDSL75
![Multi-Unit Charger](/data/skin/respon_default_en/images/sub/product/lm_acc02.jpg)
Multi-Unit Charger
- Feature
-
SDSL75 Multi-Unit Charger has fast charging capability for efficient charging of Cybertel LM75 device. It can charge 6 units of LM75 device and standard/extended battery at the same time. You can easily mount LM75 device in desktop dock and charge it hassle-free making it ready for MCX applications. Simply grab and go for any mission-critical communications.
- Charger Characteristics
-
-
Dimensions (HxWxD)
79.6x397x192
-
Weight
2580 gram
-
Number of Pockets
6
-
Operating voltage AC
220V
-
Power cable
EU, UK
-
Charge type
Non IMPRES
-
Charge rate
Device Pocket : Up to 1.5 hours
Battery Pocket : Up to 3 hours -
Chemistry
Lithium Polymer
-
Compliance
EMC, WEEE, RoHs
-
Operating Temperature
0°C to +50°C (+32°F to +122°F)
-
Package Contents
1 unit of single Bay cradle charger
1 unit of Power adaptor
-
Dimensions (HxWxD)
Wireless RSM
BR30
- Feature
-
BR30 Wireless Remote Speaker Microphone is simply designed to offer efficient and secure MCX communications via Bluetooth connectivity. The RSM consists of dedicated PTT and Emergency button as well as Volume Up / Down. Also BR30 RSM offers 3.5mm ear jack to connect wired headset.
- Characteristics
-
-
Dimensions (HxWxD)
90x63x25mm
-
Weight
84 gram
-
Connectivity
Bluetooth 4.2, USB
-
Signal-to-Noise Ratio
78dB
-
Charging connector
USB C Type
-
Number of battery
1 Lithium Ion batteries included
2,000mAh / 3.7V -
Battery capacity
PTT talking time : 14 hours(max)
Standby time : 90 hours(max) -
Package Contents
1 unit of Remote Speaker Microphone
1 unit of USB charger
1 unit of USB C type data cable
-
Dimensions (HxWxD)
Wireless Ear-mic
BEM20
![Wireless Ear-mic](/data/skin/respon_default_en/images/sub/product/lm_acc04.jpg)
Wireless Ear-mic
- Feature
-
BEM20 Bluetooth Ear-mic is for comfort over long periods of wear. The Ear-mic is equipped with a dedicated PTT button, Power and Volume Up / Down button.
- Characteristics
-
-
Connectivity
Bluetooth Version 4.1 Class 2
-
Operation range
10m
-
Bluetooth Profile
HFP, HSP, PTT
-
Battery charging time
within 3 hours
-
Battery capacity
PTT talking time : 6 hours(max)
Standby time : 50 hours(max) -
Temperature
Working temperature : -15°C ~ 45°C
Storage temperature : -25°C ~ 60°C -
Package Contents
1 unit of Bluetooth Ear-mic
1 unit of USB 5 Pin Data cable
-
Connectivity
Wireless Button
BTB20
![Wireless Button](/data/skin/respon_default_en/images/sub/product/lm_acc05.jpg)
Wireless Button
- Feature
-
BTB20 Wireless button is the most flexible way to wirelessly access to MCX functionality. You can put LM75 MCX device in the holster or vehicle cradle and still be in touch with MCX application by pressing the button.
With the mounting kit, you can locate this wireless button on your uniform or any vehicle dashboard.
- Characteristics
-
-
Dimensions (HxWxD)
40.5x40.5x13.6mm
-
Connectivity
Bluetooth Version 4.1 Class 2
-
Operation range
10m
-
Bluetooth Profile
BLE, PTT
-
Battery charging time
within 3 hours
-
Battery capacity
PTT talking time : 50 hours(max)
Standby time : 220 hours(max)
150mAh Li-Polymer -
Package Contents
1 unit of Bluetooth button
1 unit of cradle
1 unit of USB cable
-
Dimensions (HxWxD)
RAM Mount Vehicle Cradle
RAM-B-138-UN4
![RAM Mount Vehicle Cradle](/data/skin/respon_default_en/images/sub/product/lm_acc06.jpg)
RAM Mount Vehicle Cradle
- Feature
-
RAM-B-138-UN4 RAM Mount cradle offers Spring-loaded holster with adjustable side. It provides a secure fit for LM75 device with easily insert and remove the device by one hand.
- Characteristics
-
-
Dimensions (HxWxD)
Height range : 14.6 ~ 18.4 cm
Width range : 6.6 ~ 9.2 cm
Max Depth : 1.83 cm -
Socket-to-Socket Length
7.62 cm
-
Hole pattern
4-Hole AMPS : 3cm x 3.8cm
3-Hole 120-Degree: 4.6cm -
Plate size
6.35cm Diameter
-
Weight capacity
907 gram
-
Material
Marine-grade aluminum
High strength composite -
Package Contents
1 unit of RAM Finger-Grip Universal Holster(RAM-HOL-UN4U)
1 unit of RAM Double Ball Mount with Diamond Plate Adaptor - Medium(RAM-138U)
-
Dimensions (HxWxD)

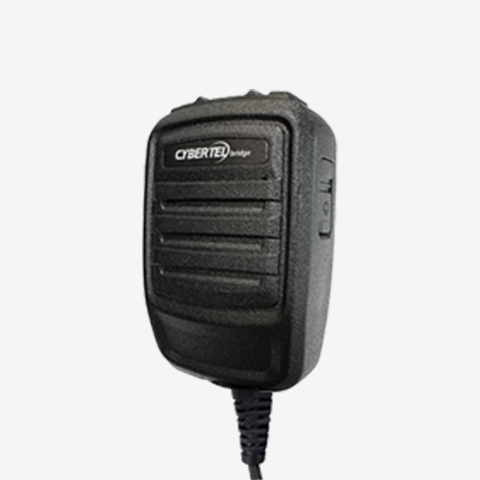

Wired RSM
WR40 / WD40
![Wired RSM](/data/skin/respon_default_en/images/sub/product/lm_acc07.jpg)
Wired RSM
- Feature
-
WR40 and WD40 Wired Remote Speaker Microphone is built for heavy duty user. The RSM features a 3.5mm audio jack(WD40) or UDC port with screw(WR40). It allows you to communicate during difficult weather with IP55 and 1.2m drop certified.
- Characteristics
-
-
Dimensions (HxWxD)
87.6x58.8x29.5mm
-
Weight
170 gram
-
Connectivity
3.5mm audio jack(WD40)
UDC connector(WR40) -
Dedicated button
PTT, Emergency,
Function(can be utilized for Ambience listening) -
Speaker sensitivity
89dB (in 1M)
-
Microphone sensitivity
38dB
-
Temperature
Working temperature : -20°C ~ 60°C
Storage temperature : -30°C ~ 80°C -
Compliance
EMC, WEEE, RoHs
-
Package Contents
1 unit of Wired RSM
-
Dimensions (HxWxD)
Wired Ear-mic
EM20
![Wired Ear-mic](/data/skin/respon_default_en/images/sub/product/lm_acc08.jpg)
Wired Ear-mic
- Feature
-
EM20 Wired Ear-mic enables user to discreetly send and receive Push to Talk voice messages. The ear-mic has clip to hold the unit on your coat.
- Characteristics
-
-
Connectivity
3.5mm audio jack
-
Dedicated button
PTT
-
Speaker sensitivity
60dB
-
Microphone sensitivity
52dB
-
Temperature
Working temperature : -20°C ~ 60°C
Storage temperature : -30°C ~ 80°C -
Compliance
WEEE, RoHs
-
Package Contents
1 unit of Wired Ear-mic
-
Connectivity
